Kessil AP9X Mounting Arm

Kessil AP9X Mounting Arm (KSAGN04)
Sleek, Adjustable Mounting Arm Exclusively for the AP9X Light

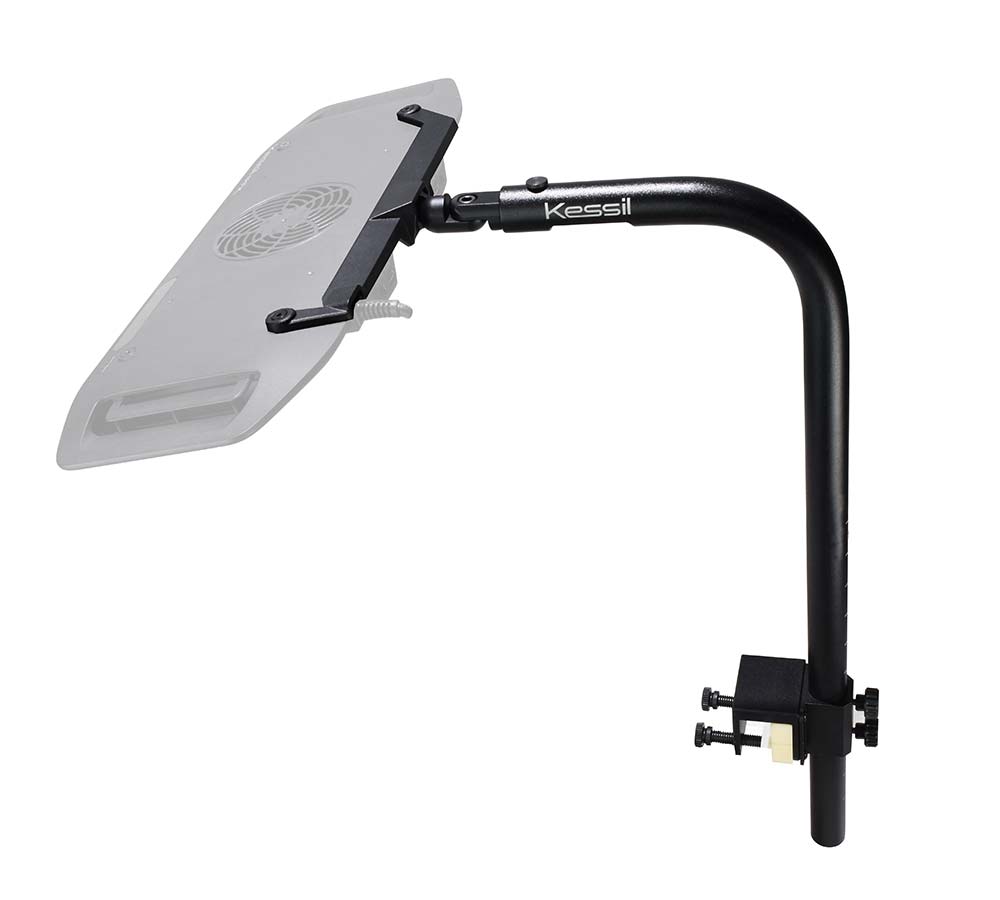

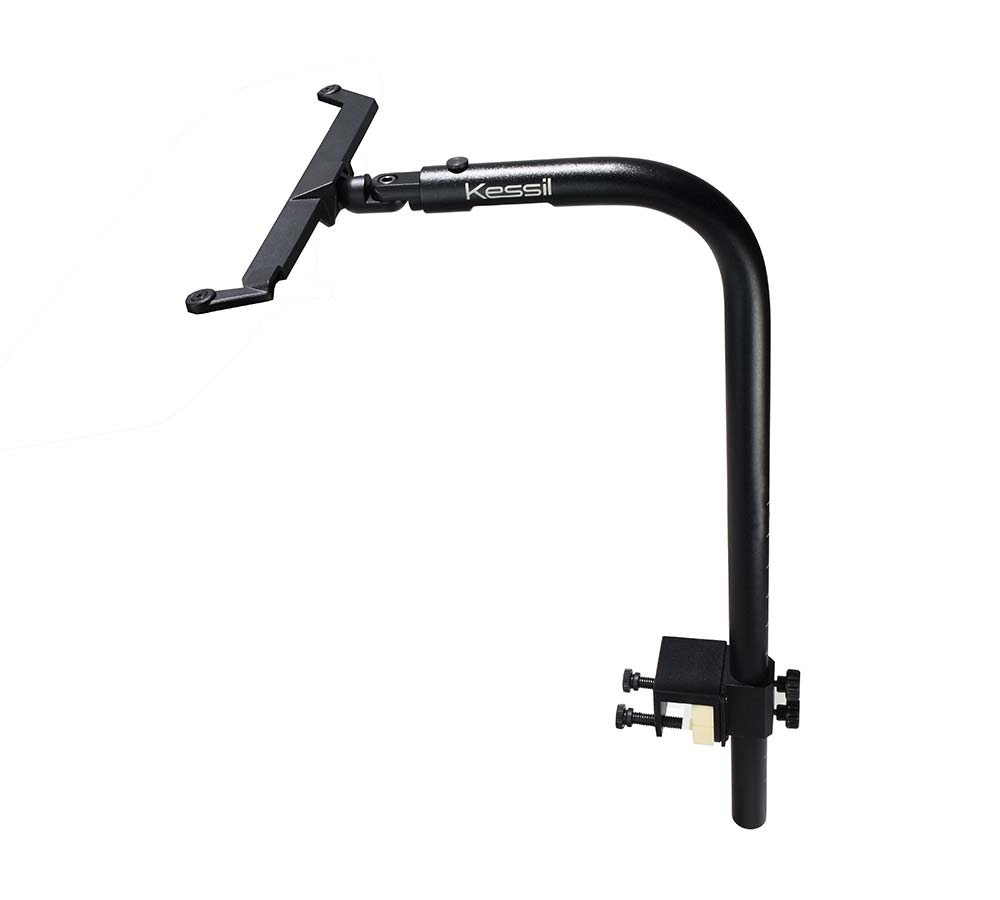

The Kessil AP9X Mounting Arm is a streamlined, low-profile mounting solution designed specifically for the AP9X LED light. It features an integrated swivel joint that allows 180° horizontal and 60° vertical rotation, effectively reducing shadowing and providing optimal light coverage.

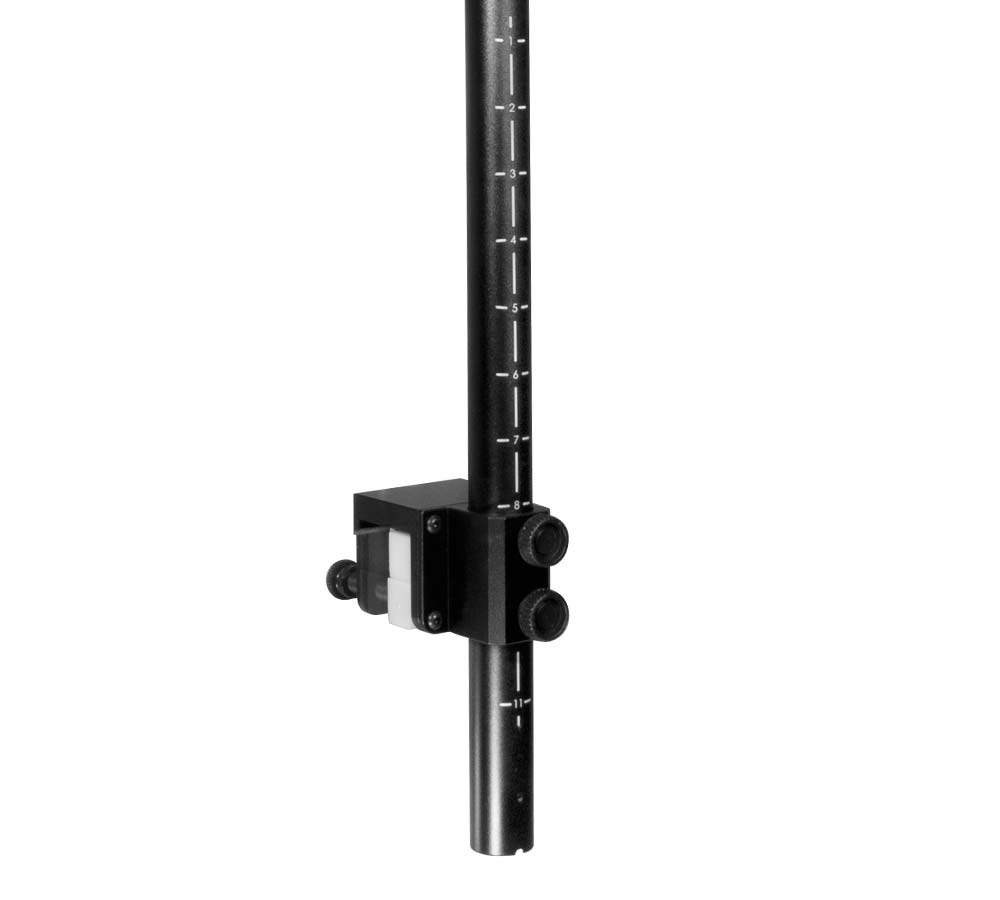

Designed for rimmed and rimless tanks between 18"–24" wide, this single-arm mount offers adjustable height and reach. Internal cable management ensures a clean and professional appearance by routing wires through the arm itself.

Note: This arm is designed exclusively for the AP9X. Other Kessil lights require different mounting arms.

Specifications:

• Part Number: KSAGN04
• Weight: 2 lb / 0.9 kg
• Arm Dimensions:
• ø 1" x W 12.32"–15.43" x H 20.78"
• (ø 2.54 cm x W 31.29–39.19 cm x H 52.78 cm)
• Maximum Height: 17 inches above water surface

What's in the Box:

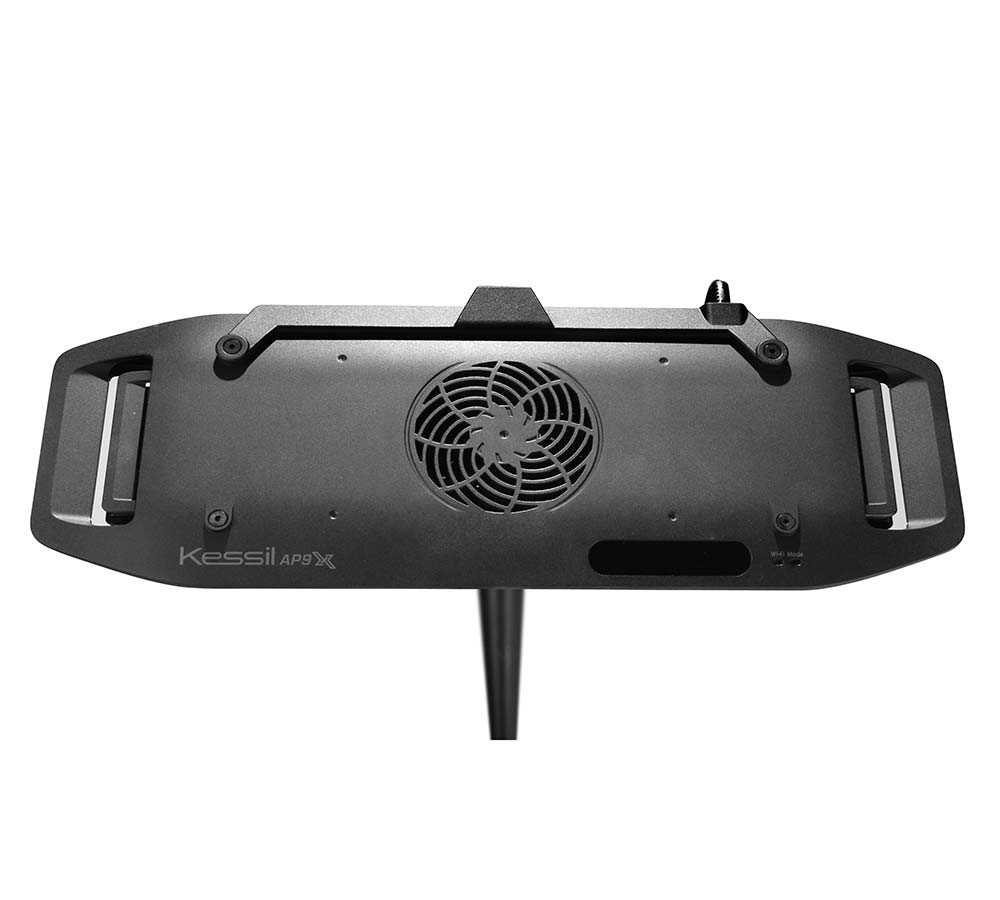

• AP9X Bracket + Slide Bar (x1)
• Tooth Lock Washer, M6 (x1)
• M6 Cap Head Hex Screw, L=8mm (top), L=12mm (side) (x1)
• Mounting Arm (x1)
• Arm Mount (x1)
• Tube Adapter (x1)
• M4 Flat Head Hex Socket Cap, L=12mm (Spare) (x2)
• M4 Flat Head Hex Socket Cap, L=8mm (x4)
• Plastic Steppers (x2)
• M3 Thumb Screw (x1)
• M5 Flat Head Phillips Caps, L=10mm (x4)
• M5 Thumb Screws (x2)
• 5mm M6 Hex Key (x1)
• 2.5mm M4 Hex Key (x1)
• Plastic Thumb Screws 3/8-16 (x2)
• M4 Wood Screws (x4)

The Kessil AP9X Mounting Arm offers precise light placement, clean cable management, and a stylish solution tailored specifically for your AP9X LED lighting system.
